Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: CHENHUA
  • Model Number: CH-LS
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: can be painted any color according to your need
  • Certificate: ISO9001 / BV / SGS
  • Type: Automatic / Semi-automatic
  • Parts: Including environment protection part
  • Engineer: Overseas installation and guiding
  • Fuel: Gas / Diesel / Coal ...
  • Advantage: easy to use and instal;Clean & cheap; environmental-friendly
  • Heat transfer: Conduct oil transfer
  • Translator: Needed for translation between engineer and buyer
  • Annual capacity: 2 / 3 / 5 / 8 .. million sqms per year

Packaging & Delivery

Packaging Details Bitumen membrane waterproof making machine
Packing: seaworthy plywood packing for vulnerable parts, other parts to be put safely based on saving space to save ocean freight.
Normally , 3--5 * 40'ft contaienrs will be enough.
Delivery Time 40--90days after order confirmed
Product Description



SBS/APP Bitumen membrane waterproof making machine

The production line is to produce bitumen waterproof membrane

Finished bitumen Membrane is widely used in industrial and civil buildings, such as roof, basement,

toilet, bridge, park, swimming pool, tunnel for waterproof moisture-proof.



Model Name

DYZ---100

DYZ---200

DYZ---300

DYZ---500

DYZ-800

DYZ-1000

DYZ-->1000

Machine Type

Simple

Simple

Midsize

Midsize

Large

Large

Large

Membrane(m²)

Annual Output

1 million

1.5--2

2.5--3

4.5--5

6-8

8-10

>1000

Workshop required

(L×W×H meter)

40×10×6.5

40×10×6.5

40×10×6.5

45×12×6.5

50×12×6.5

60×12×6.5

70×12×6.5

Operation Mode

Semi-automatic or automatic



Finished products'(bitumen membrane) description

Item

Torch applied bitumen waterproof membrane

Self-adhesive bitumen waterproof membrane

Base

Polyester mat /Fiberglass Compound mat/.....

Surface material

Pfilm

Sands

Mineral flakes

Aluminum foil

Isolation layer

Thickness

2mm-5mm

Spec.&Packing

1m*10m(W*L)/roll  wrapped by tape

Standard

GB18242-2008 Elastomeric modified bitumen membrane

GB18243-2008 Plastic modified bitumen membrane

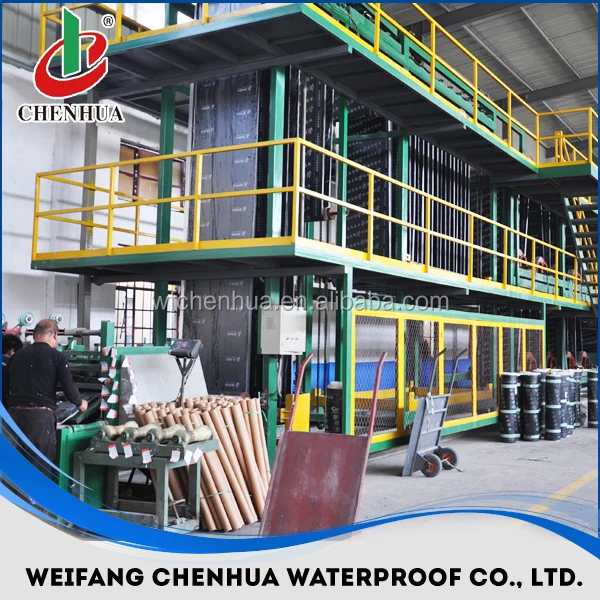

Product show



SBS/APP Bitumen membrane waterproof making machine

Technological process

Bitumen - Mixed with rubber powder, talc powder.

Meanwhile polymers are added to the bitumen such as APP (atactic polypropylene)

a plastic additive that gives rigidity and tear resistance or SBS (styrene butadiene

styrene) a rubber additive that gives more elastic benefits. then it to be covered with

 limestone or sand or PE film or aluminum film.

Production speed

0-50m / minute (adjustable)



Machine name

SBS/APP Bitumen membrane waterproof making machine

Advantage

1)Rational structure

2)Low transportation, installation, adjustment cost

3)Convenient to operate

Four parts included

1)Production line part (Indoor parts)

2)Heating Boiler part

3)Oxidation bitumen part

4)Environment production part(Outdoor parts)

Some parts :  SBS/APP membrane production line

1

Unwinding device

11

Suspend cooling device

2

Splicing machine

Splice the base mat

12

Cooling embossing device

3

Bast mat storage

Storage capacity with 30m--50m

13

Finished products storage device

4

Drying device

Drying length is 5-8meters

14

Automatic Convolver



5

Deviation device

Photoelectric detection.

15

Platform

6

Impregnating device

Up&down press-roller

16

Electrical operating control devices

7

Asphalt coating device

With pump

17

Mixing-weighing system devices

8

PE film laminating device

18

Horizontal storage tanks

9

Sand lifting device

19

mixer tank

10

Sand lifting and spreading device

20

Smoke purification device

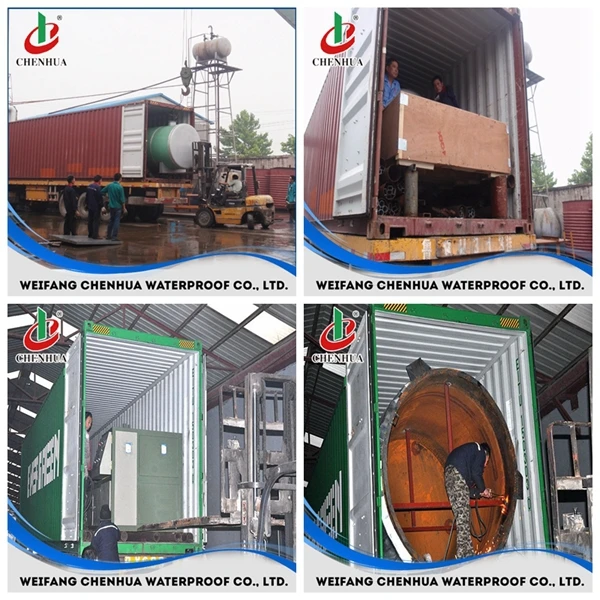

Loading



SBS/APP Bitumen membrane waterproof making machine

FAQ

SBS/APP Bitumen membrane waterproof making machine to produce bitumen membrane rolls

1)Engineers will supply overseas installation guiding service.



2)Installation will be finished within 2 months normally.

(buyer should supply enough labour help and installation tools help )



3)Trial operation will be finished within 15days normally.

(buyer should supply necessary raw materials and auxiliary tools and rooms )



4)We welcome your visit to our factory ,then,it would be our greatest pleasure to introduce every part to you face-to-face. you can choose the parts you need or delete the parts you don't need.





Company introduction

WEIFANG CHENHUA WATERPROOF Co.,Ltd was established in 1994, she is located in Taitou

industrial part,Shouguang,Shandong,China. which is the biggest construction waterproofing base

in China. with convenient transportation and superior location.Our Company now has three factories,

covering an area of 70000 square meters, there are more than 300 high qualification employees with

state-of-the-art technology,superior quality and service.



Our main products :

1)Polyester base for making bitumen waterproofing membrne.

2)Compound base for making bitumen waterproofing membrane

3)SBS/APP torch on modified bitumen waterproofing membrane

4)Self-adhesive bitumen waterproofing membrane

5)PVC waterproofing membrane,TPO waterproofing membrane

6)Bitumen membrane waterproof making machine ....



In the last years of hard work,our company reaches ISO9001 and BV standard and establish long term

relation with many domestic factories and overseas clients.such as,Beijing Oriental Yuhong waterproofing

technology Co.,Ltd,Hongyuan waterproof material Co.,Ltd,Russia,Iran and Iraq waterproof materials

manufacturers,

We enjoy a higher reputation all over the world.welcome your enquiry and visit anytime.
